• Model NO.：HD-P307
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Certificate：ISO9001: 2008
• Warranty Period：One Year
• Delivery Time：15 Days After Receive Deposit
• Specimen Load：10n ± 0.2n
• Fixture Load：2.5n
• Weight Load：2.5n,5n
• Fixture Lateral Displacement：4.2 ± 0.04mm , Wheel Every Lap
• Attrition Rate：0.32m,Sec
• Power：AC220V,2.6A
• Roller Length：460mm
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：China
• HS Code：9024109000
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-P307 Control Manual Control Weight 0-100Kg Power Source AC220V Certificate ISO9001: 2008 Warranty Period One Year Delivery Time 15 Days After Receive Deposit Specimen Load 10n ± 0.2n Fixture Load 2.5n Weight Load 2.5n,5n Fixture Lateral Displacement 4.2 ± 0.04mm / Wheel Every Lap Attrition Rate 0.32m/Sec Power AC220V,2.6A Roller Length 460mm Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin China HS Code 9024109000 Production Capacity 150 Sets/Month

Product Description

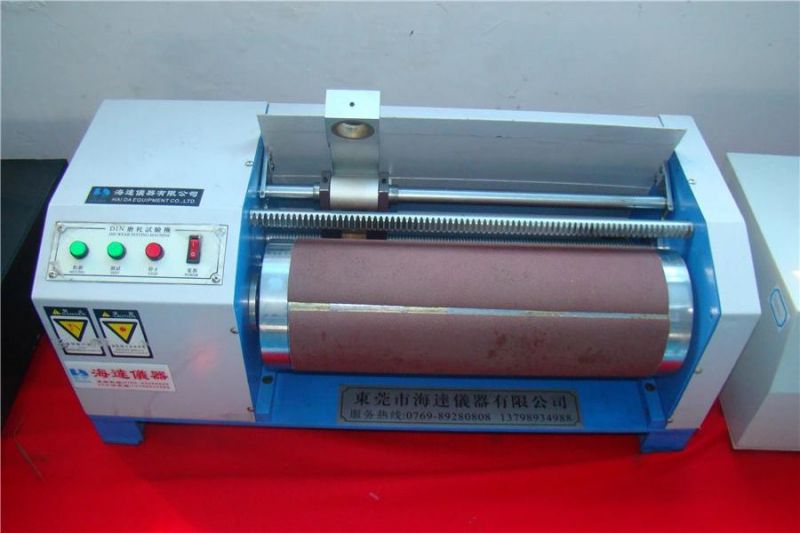

DIN Type Abrasion Testing Instrument
Product Description:
DIN Rubber Abrasion Resistance Tester applies flexible meterials,rubber,tires,conveyor belt,shoes,leather,soft synthetic leather,leather...and other materials,soft materials,Measure of the quality of the wear and tear.

Principle:
At a predetermined contact pressure and a given area, the sample and the sandpaper into a certain angle, the measurement sample at a certain level of friction generated on the abrasive wear resistance.

Sandpaper attached to the surface of the roller package, the sample is pressed against the drum with the sandpaper, so that the lateral movement of the drum sample.

Wear the sample in the cylindrical end of the generation, measurement value of the sample mass loss, calculate the volume density of the sample by the amount of wear.


According to the Standard:
This instrument reference standard: DIN-53516, ISO-4649, GB / T 9867.


The Main Technical Parameters of DIN Rubber Abrasion Resistance Tester:

Item	Specification
Specimens size	16mm, 6-15mm (D)
Fixture load	2.5N
Weight load	2.5N,5N
Fixture lateral displacement	4.2mm/wheel each lap
Wheel diameter	150mm
Wheel length	460mm
Wheel rotate speed	40rpm
Abrasion speed	0.32m/sec
Dip angle	3°the angle of the specimen back shaft with vertical roller face

Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
