Fabric Scorch and Sublimation Hot Pressing Dry Heat Colour Fastness Testing Equipment
Wenzhou Darong Textile Instrument Co. Ltd- Warranty：1 Year
- Type：Color Fastness Testing Machine
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Power Source：AC220V
Base Info
- Model NO.：YG(B)605DG
- Temperature Range：Room-220
- Pressure：4kpa
- Heating Method：Double Sides
- Heating Block：125X125mm
- Transport Package：Export Package
- Trademark：DARONG
- Origin：China
- HS Code：9024800000
- Production Capacity：2000sets,Month
Description
Basic Info.
Model NO. YG(B)605DG Temperature Range Room-220 Pressure 4kpa Heating Method Double Sides Heating Block 125X125mm Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/MonthProduct Description

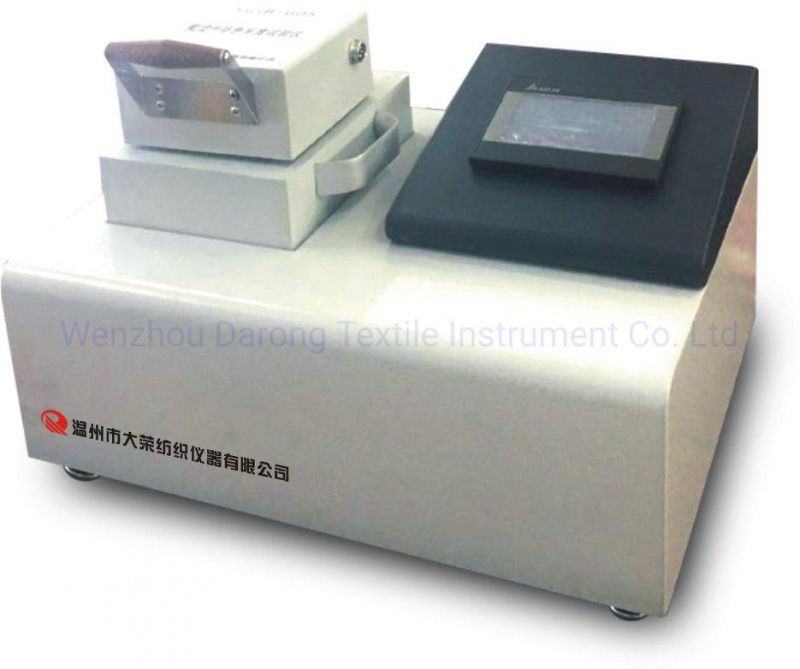

YG(B)605DG Fabric hot pressing color fastness testing equipment[Scope of application] It is used for testing the color fastness to ironing and sublimation of all kinds of colored textiles.
[Related standards]
Aatcc92/114/117/133 L0854 BS1006 PO1&X11 DIN54022/54060 GB/T5718, GB/T6152, ISO 105-X11, M&S P10 X11&P01 JIS L0850, L0879, etc.
[Technical features]
1. Color touch screen display and control, easy to operate;
2. Using imported chips, high precision temperature sensor;
3. Heating plate surface hard oxidation treatment.
[Technical parameters]
1. Heating method: ironing (single-side heating)
2. Size of heating block :(125×125)mm
3. Test pressure: 4kPa±1kPa(upper heating block weight 65.5N)
4. Test time :(0 ~ 65535)s
5. Heating temperature: room temperature ~ 220ºC±2ºC
6. Power source: AC220V±10% 50Hz 500W
7. Overall size :(550×400×250)mm
8. Weight: 18kg
