• Model NO.：GD-2806H
• PC Port：Yes
• Pringting：Yes
• Dimension：400*300*490mm
• Delivery Time：10 Working Days
• Transport Package：Wooden Case for Gd-2806h
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Product nameGd-2806h Automatic Petroleum Asphalt Softening Point Apparatus (four samples)Power supplyAC 220V (-5%~+10%), 50 HzMeasurement range32 ºC~160 ºC.
(1) Heating medium: distilled water (softening point under 80 ºC)
(2) Heating medium: glycerin (softening point over 80 ºC)
 Temperature resolution0.01 ºCCubage of beaker1000 mlStirrerthe stirring speed can be adjusted continuouslyHeating rateit will be adjusted to 5.0±0.5 ºC/ min automatically after three minutesHeating power600 WTest resultLCD screen shows results and printer to print.Ambient temperatureThe temperature shall be lower than 35 ºC and keep stable. There shall not be any airflowRelative humidity≤85%Maximum power consumption700 WTest samples4 samples

Related Products:

Model	GD-2806G (Two samples and automatic)	GD-2806H (Four samples and automatic)
Standards	GB/T4507,T0608, ASTM D36	GB/T4507,T0608, ASTM D36
Measurement Range	32 ºC~160 ºC	32 ºC~160 ºC
Temperature Resolution	0.01 ºC	0.01 ºC
Heating rate	5.0±0.5 ºC/min after 3 minutes	5.0±0.5 ºC/min after 3 minutes
Sample quantity	2	4
Detection mode	Automatic	Automatic
Printing	yes	yes
Remark 1	LCD display, light touch panel, double samples	LCD display, light touch panel, four samples
Remark 2	Can communicate with PC	Can communicate with PC, can determine resin

Other Asphalt Testing Instrument:
Penetrometer series
Asphalt softening point tester series
Asphalt ductility tester series
GD-0620A Asphalt dynamic viscometer
GD-0613A Automatic breaking point apparatus
GD-0624 Asphalt tenacity tester
GD-0615 Petroleum asphalt wax content tester
GD-0610 85 Type asphalt rolling thin film oven
GD-0609 82 Type asphalt rolling thin film oven
GD-0621 Asphalt standard viscometer
GD-0623 Saybolt viscometer
GDE-1B Engler viscometer
GD-0709 Marshall stability tester
GD-0709A Marshall stability tester
GD-0752 Wet wheel abrasion tester
GD-0754 Cohesion tester
GD-0755 load wheel rolling tester
GD-F02-20 Automatic mixture blender
GD-0702 Marshall electric compactor
GD-0703 wheel-track modeling machine
GD-6307 Asphalt content tester
GD-0719 Automatic wheel-track tester(common type)
GD-0722 Centrifugal extractor
GD-0711A Bituminous mixtures theoretical maximum specific gravity tester



Product Packing:

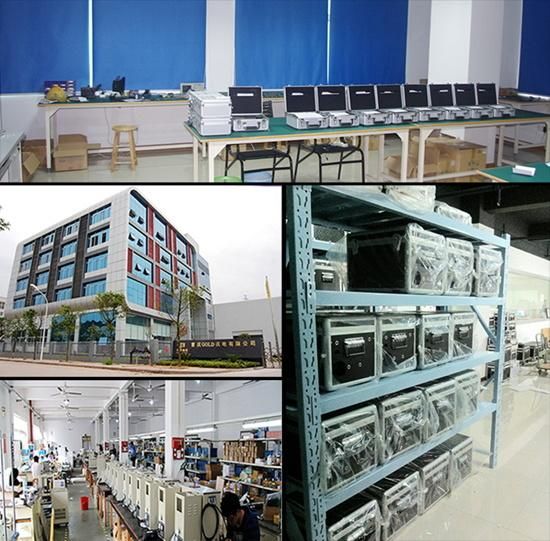

Company  Information:
