• Model NO.：PL-01,PL-02
• HS Code：90248000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. PL-01/PL-02 HS Code 90248000 Production Capacity 200 Sets/Month

Product Description

Rock point load test apparatus
STANDARD: ASTM D-5731

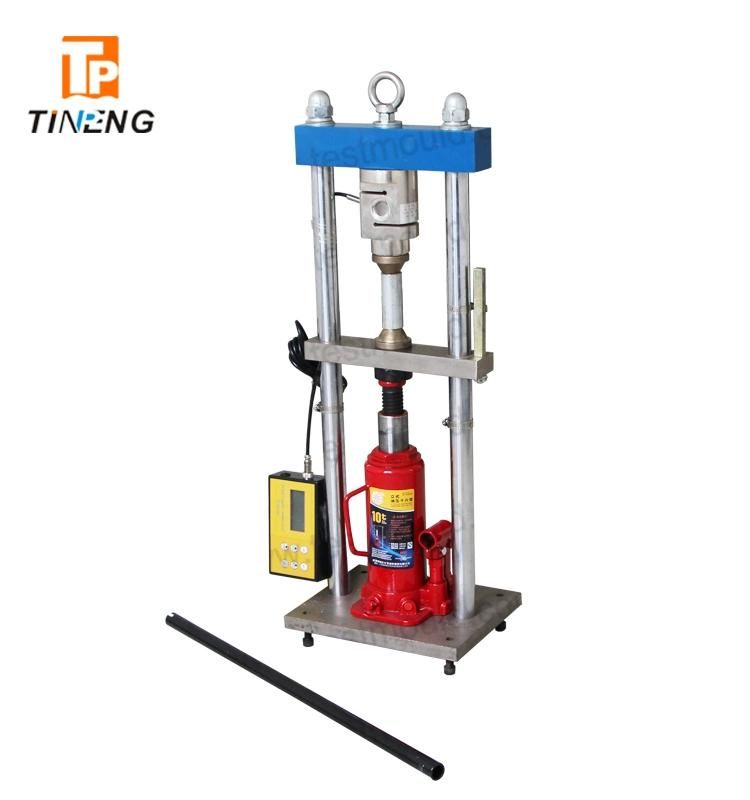

This apparatus comprises a two-column fi xed crosshead frame and a hand operated hydraulic jack.
Pressure applied by the jack extends the piston carrying the lower conical point. The upper point is fi xed to the
crosshead with a scale mounted on the frame to provide specimen diameter information for use in point load
strength index calculations.

For model PL-01, its pressure is indicated on the pressure gauge, model PL-02 is indicated directly on the digital
readout unit.
Loads up to 50 kN can be applied to specimens as large as 101.6 mm in diameter.
