Product Description

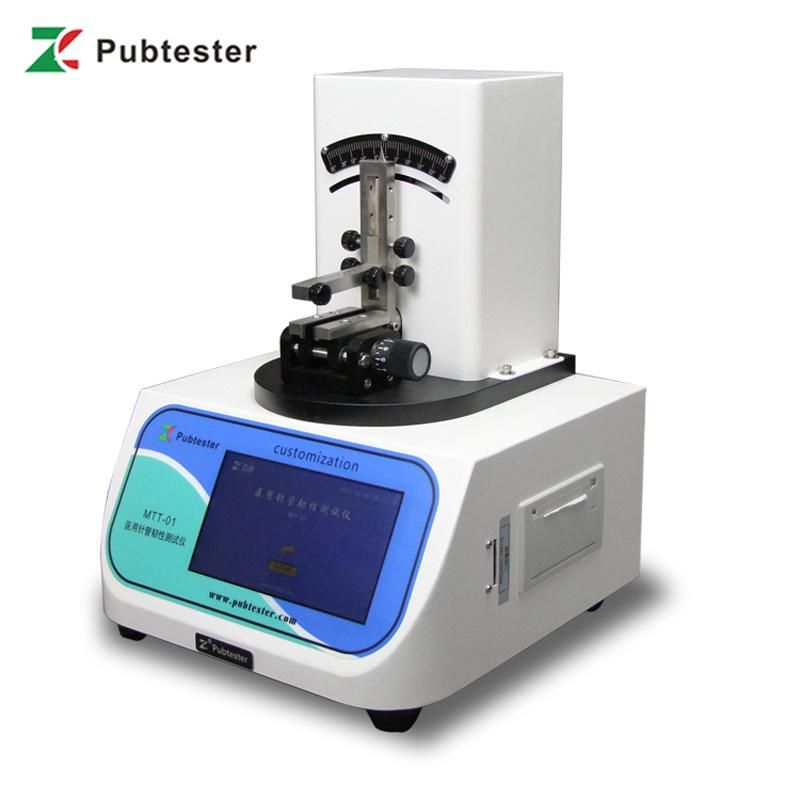

MTT-01 Medical Needle Toughness Tester

MTT-01 Medical Needle Toughness Tester is suitable for measuring the toughness of human intradermal, subcutaneous, muscle and intravenous injection needle tubes and other rigid stainless steel needle tubes for medical equipment.


Technical Features

• 7-inch color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience

• Concise and intuitive operation interface, convenient user-defined test functions, and complete data analysis and reporting functions
• Automatic calibration, simple and convenient operation
• Brand-new UI interface design, intuitive operation interface, greatly improving the operation experience
• Support a variety of specifications sample test, normal wall, thin wall, ultra-thin wall can freely choose
• With automatic data storage, power-off automatic memory function
• Powerful data storage function, which can store more than 6000 data
• The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.

Test Principle
Fix one end of the needle tube on the fixture, adjust the prescribed span and select bending angles as following, 25° for normal wall, 20° for thin wall, and 15° for ultra-thin wall.
Apply a sufficiently large force at the specified span position, exert force bi-directionally 20 times at a frequency of 0.5 Hz to observe the breakage of the needle tube.
Applications

Basic Applications	Extended Applications
Disposable sterile injection needle	Infusion needle
Prefilled injection needle	Needle tube

Technical Specifications

Specifications	MTT-01
Test Frequency	0.5Hz ± 0.025Hz
Bending Angle	15°, 20°, 25°
No. of Test	Bi-directional force 20 times
Needle Tube Specification	Regular wall, thin wall, ultra thin wall optional
Nominal Specifications	0.2~3.4mm
Bending Distance	Accuracy: ±0.1mm
Instrument Dimension	340mm (L) x 230mm(W) x 320mm(H)
Net Weight	12Kg
Power Supply	220V 50Hz

Standards
ISO9626-1991, GB/T 18457-2015, GB/T 15811-2016

Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture.
