Special Design Turbocharger Balancing Machine (PHZY-1.6)
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Mass Scope of Workpiece:<900kg
- Type:Vibration Testing Machine
Base Info
- Model NO.:PHZY-1.6
- Maxcapacity:<1000KN
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Length:800 Mm
- Width:650 Mm
- Height:800 Mm
- Gross Weight:150 Kg
- Transport Package:Packed in Fumigated Wood Box
- Specification:ISO9001: 2008 CE SGS
- Trademark:JP
- Origin:Shanghai China
- HS Code:90311000
- Production Capacity:1000 Set,Sets Per Month Negotiation
Description
Basic Info.
Model NO. PHZY-1.6 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Length 800 Mm Width 650 Mm Height 800 Mm Gross Weight 150 Kg Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Set/Sets Per Month NegotiationProduct Description
Special design turbocharger balancing machine (PHZY-1.6)Quick Details
Place of Origin: Shanghai, China (Mainland)
Brand Name: JP
Model Number: PHZY-1.6/5/16
Power: Electronic
Usage: Balancing Machine
Output Power: 0.23KW DC
Length: 800mm
Width: 700mm
Height: 1400mm
Gross Weight: 200kg
Number of Packing: 1pcs
Delivery time: Within 25 days
Power Supply: 220V or Custom
Site: shjpbalancer.en.made-in-china.com
Item: Wind turbine rotor balance testing machines
Packaging & Delivery
Packaging Details: Fumigated Wood Box
Delivery Detail: Within 25 days after confirming the order
Specifications
Wind turbine rotor balance testing machines
Auto-positioning bed, 17 inch LCD screen, large tool carriage structure
Dedicated br

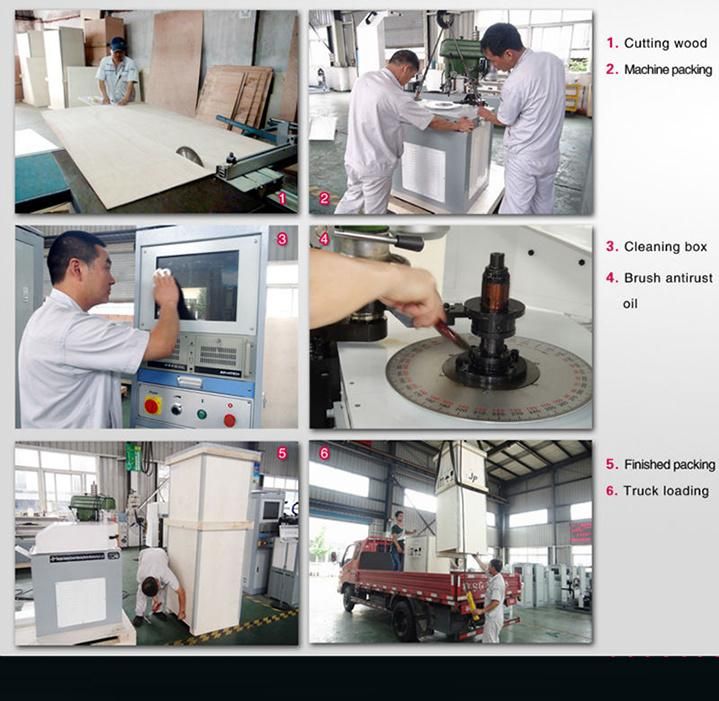

Package and transport
Production Description

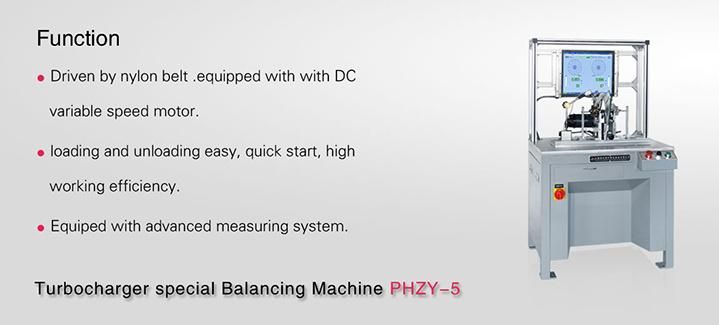

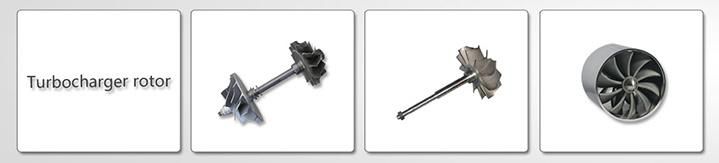

? Widely used in balancing turbocharger, turbocharger impellers, turbocharger compressors, turbocharger turbines etc.
? Auto-positioning bed, 17#LCD screen, large tool carriage structure
? Dedicated bracket, driven by Nylon belt, variable speed motor 230W

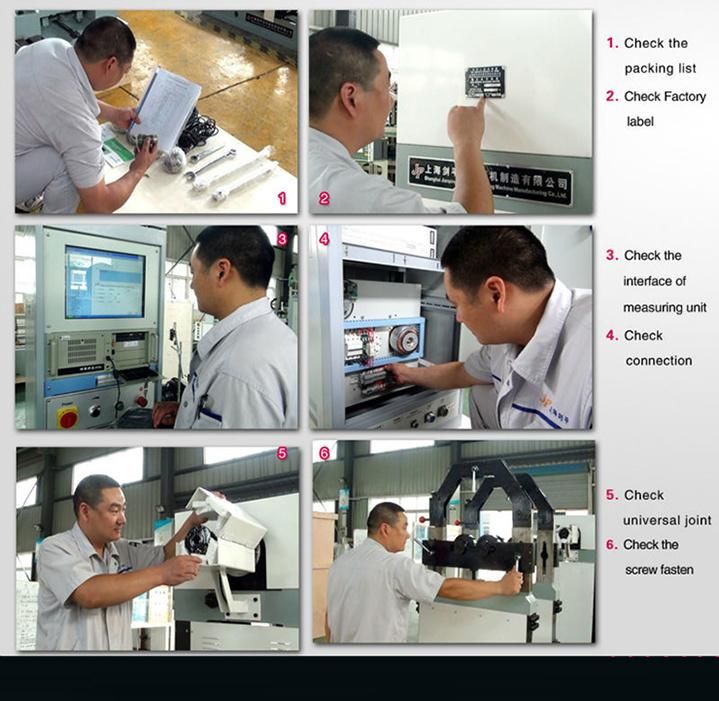

Delivery inspection
Range of Application
This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency.
Certificates
Technical data at a glance | PHZY-1.6/5/16 |
Maximum weight of workpiece(kg) | 1.6/5/16 |
Maximum diameter of workpiece(mm) | 300 |
The distance between two bearing pedestals (mm) | 25-480 |
Journal diameter on roller carriages(mm) | 3-40 |
Belt driving diameter(mm) | 15-150 |
Rotation speed when the diameter of operating transmission is 100mm(r/min) | ~1470 |
Motor power (kw) | 0.23DC |
Minimum achievable residual unbalance (emar) | <=0.3g.mm/kg |
