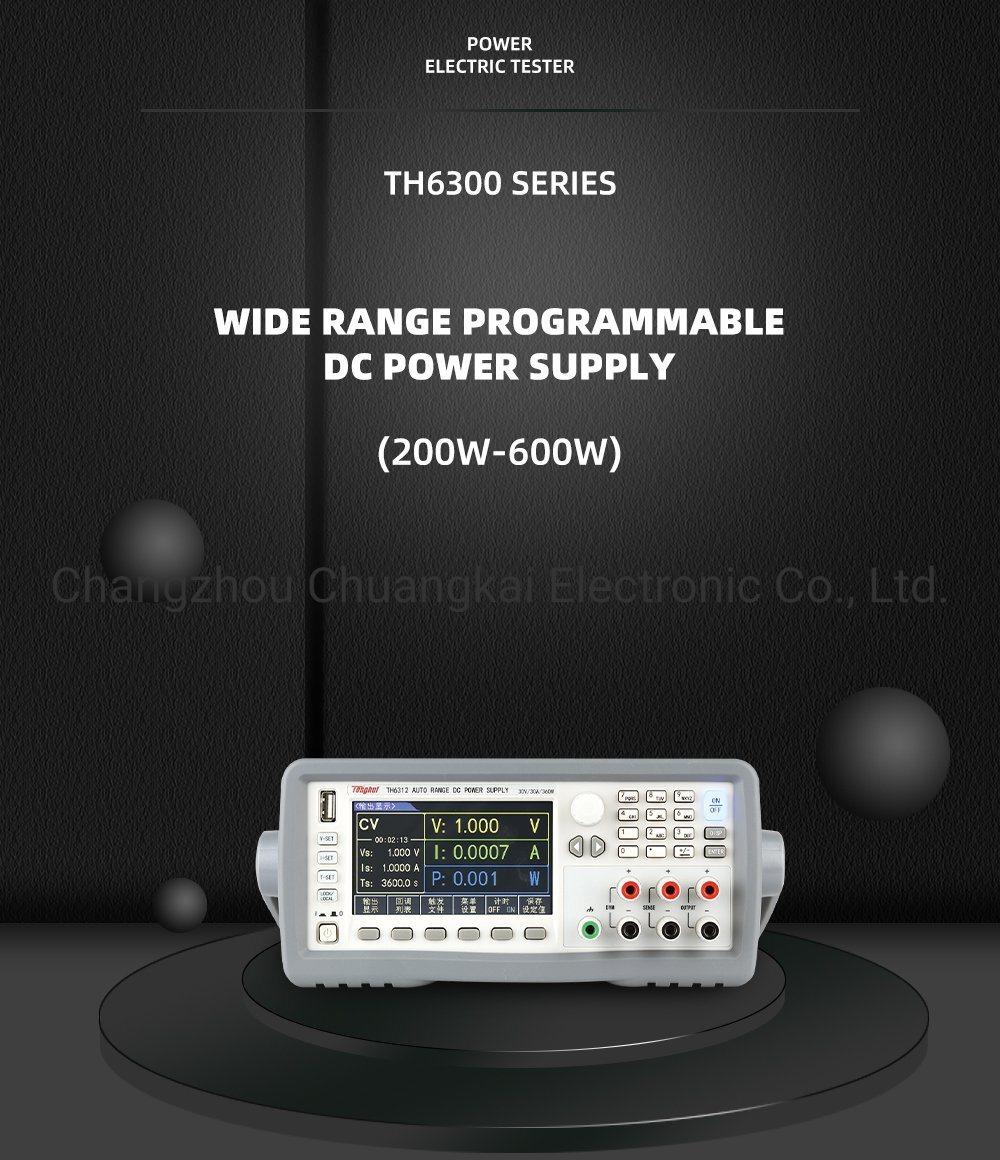

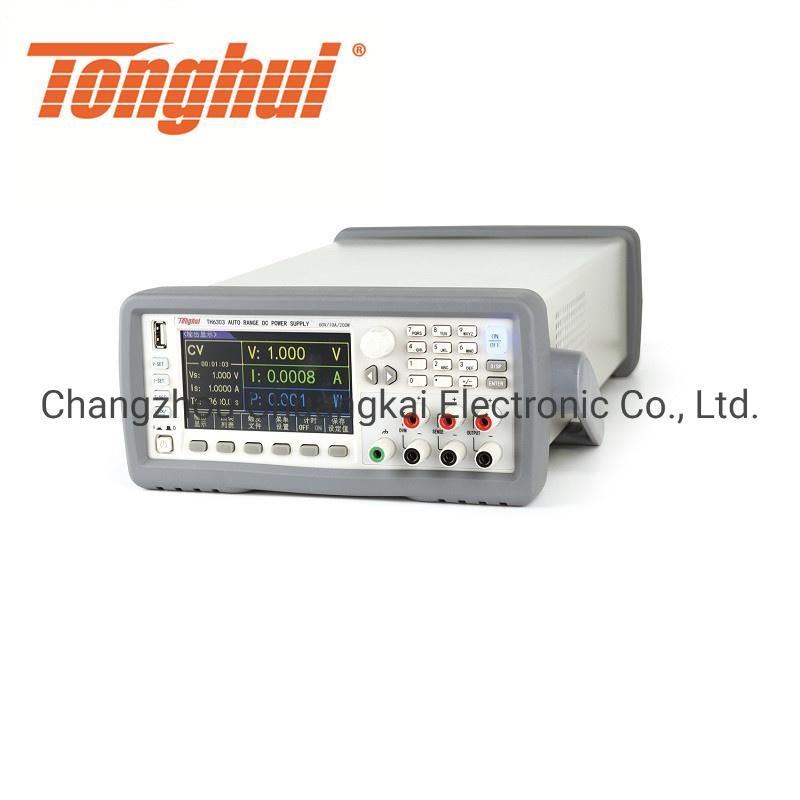

Th6302 Wide Range 30V/20A/200W Linear DC Power Source Programmable Type
Changzhou Chuangkai Electronic Co., Ltd.- After-sales Service:Lifelong
- Warranty:1 Year

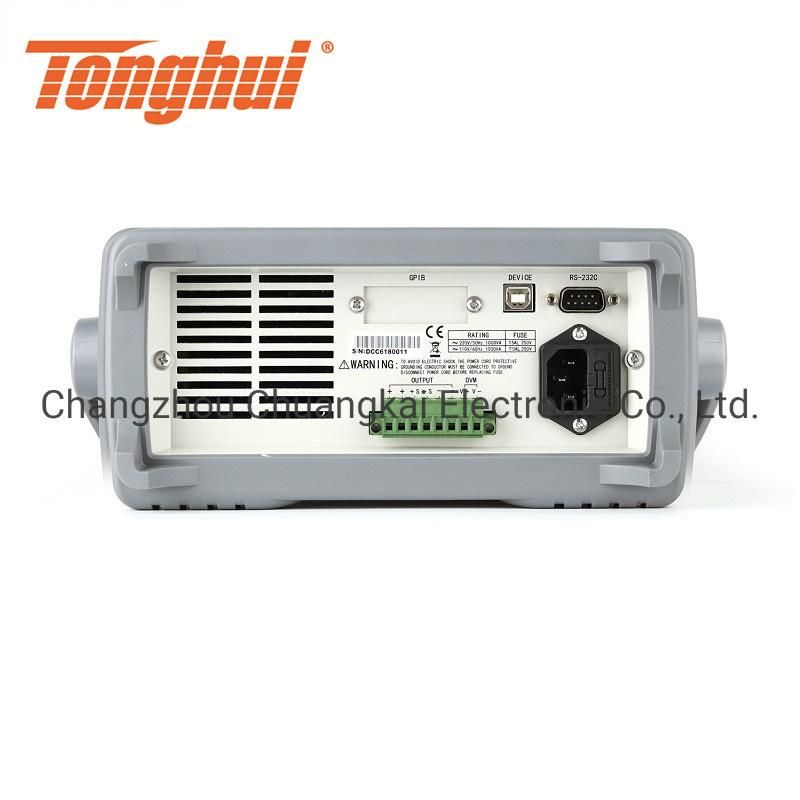

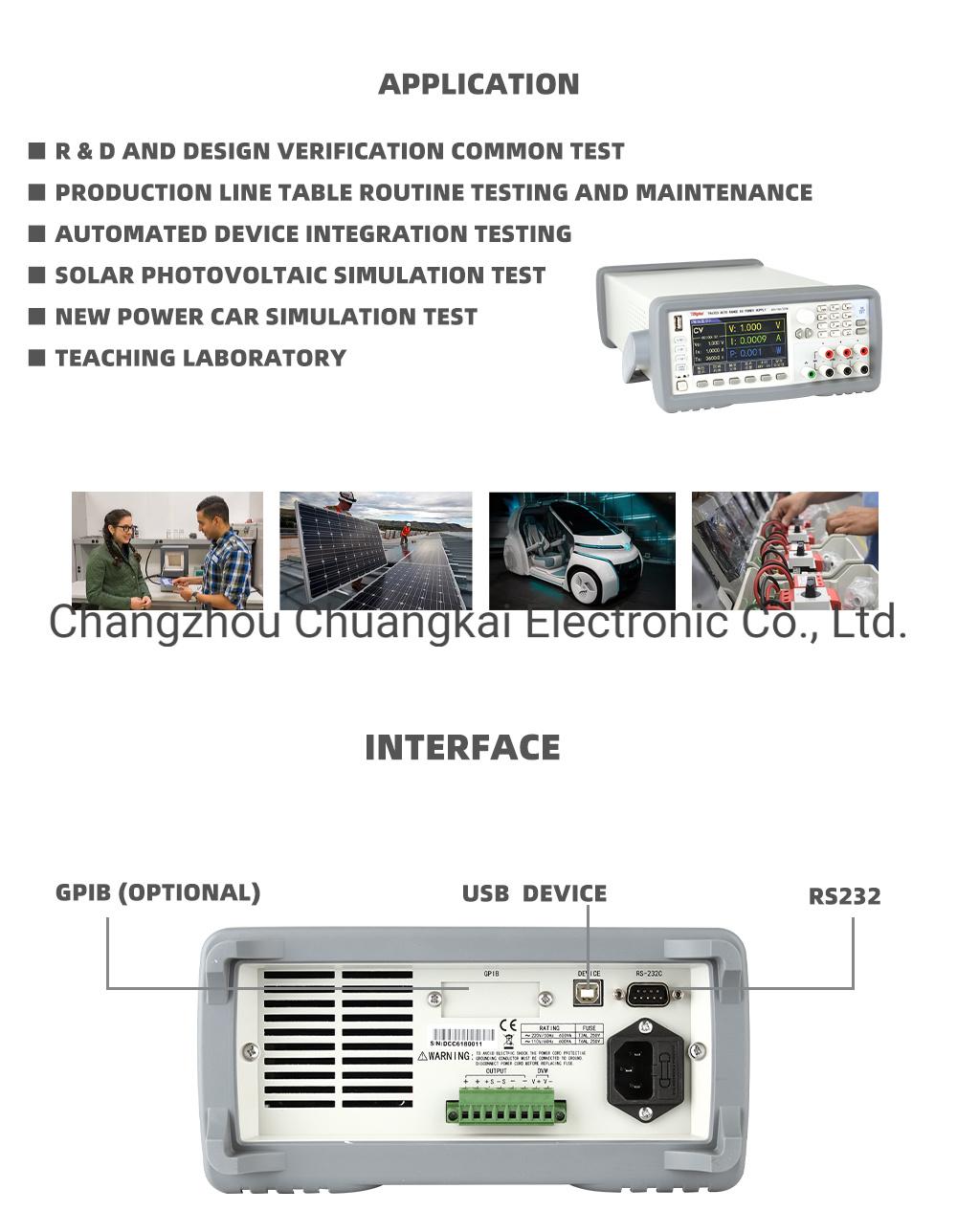

- Interface:RS232, USB Host, USB Device, Gpib (Optional)
- Memory:10 Sets of Trigger Output, 100 Steps Per Group, 10
- Dimension (mm):235(W) X111(H) X440(D)
- Product Name:Th6302 Wide Range 30V,20A,200W Linear DC Power
Base Info
- Model NO.:TH6302
- Feature:High Stability
- Transport Package:Carton
- Specification:57x48x36cm
- Trademark:CKT
- Origin:China
- HS Code:9030339000
- Production Capacity:3000 Sets Per Month

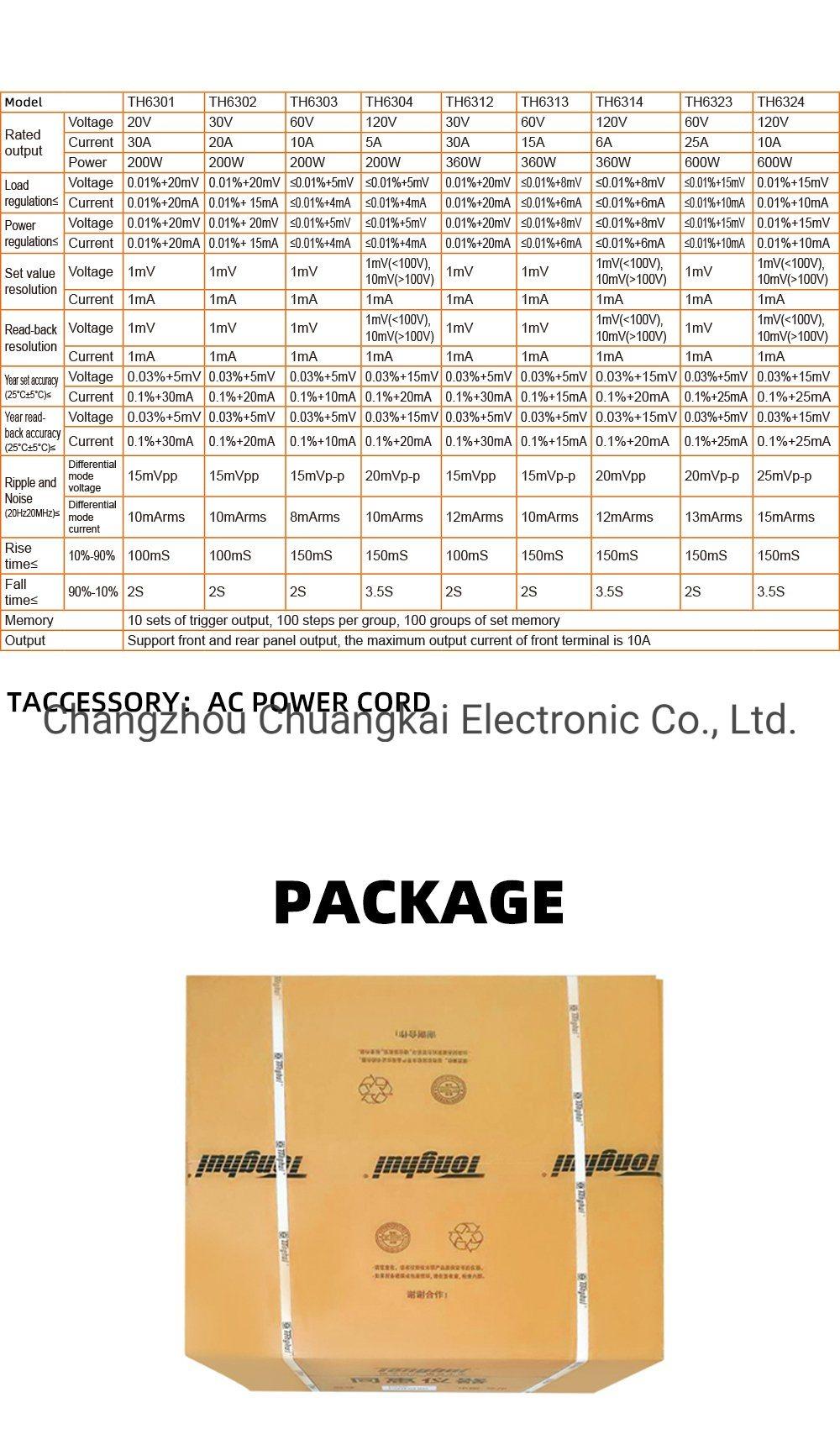

Description
Voltage
20V
30V
60V
120V
30V
60V
120V
60V
120V
Current
30A
20A
10A
5A
30A
15A
6A
25A
10A
Power
200W
200W
200W
200W
360W
360W
360W
600W
600W
Load
Regulation≤
Voltage
0.01%+20mV
0.01%+20mV
≤0.01%+5mV
≤0.01%+5mV
0.01%+20mV
≤0.01%+8mV
≤0.01%+8mV
≤0.01%+15mV
0.01%+15mV
Current
0.01%+20mA
0.01%+ 15mA
≤0.01%+4mA
≤0.01%+4mA
0.01%+20mA
≤0.01%+6mA
≤0.01%+6mA
≤0.01%+10mA
0.01%+10mA
Power
Regulation≤
Voltage
0.01%+20mV
0.01%+ 20mV
≤0.01%+5mV
≤0.01%+5mV
0.01%+20mV
≤0.01%+8mV
≤0.01%+8mV
≤0.01%+15mV
0.01%+15mV
Current
0.01%+20mA
0.01%+ 15mA
≤0.01%+4mA
≤0.01%+4mA
0.01%+20mA
≤0.01%+6mA
≤0.01%+6mA
≤0.01%+10mA
0.01%+10mA
Set Value
Resolution
Voltage
1mV
1mV
1mV
1mV(<100V),
10mV(>100V)
1mV
1mV
1mV(<100V),
10mV(>100V)
1mV
1mV(<100V),
10mV(>100V)
Current
1mA
1mA
1mA
1mA
1mA
1mA
1mA
1mA
1mA
Read-back
Resolution
Voltage
1mV
1mV
1mV
1mV(<100V),
10mV(>100V)
1mV
1mV
1mV(<100V),
10mV(>100V)
1mV
1mV(<100V),
10mV(>100V)
Current
1mA
1mA
1mA
1mA
1mA
1mA
1mA
1mA
1mA
Year set
Accuracy
(25°C±5°C)≤
Voltage
0.03%+5mV
0.03%+5mV
0.03%+5mV
0.03%+15mV
0.03%+5mV
0.03%+5mV
0.03%+15mV
0.03%+5mV
0.03%+15mV
Current
0.1%+30mA
0.1%+20mA
0.1%+10mA
0.1%+20mA
0.1%+30mA
0.1%+15mA
0.1%+20mA
0.1%+25mA
0.1%+25mA
Year Readback Accuracy (25°C±5°C)≤
Voltage
0.03%+5mV
0.03%+5mV
0.03%+5mV
0.03%+15mV
0.03%+5mV
0.03%+5mV
0.03%+15mV
0.03%+5mV
0.03%+15mV
Current
0.1%+30mA
0.1%+20mA
0.1%+10mA
0.1%+20mA
0.1%+30mA
0.1%+15mA
0.1%+20mA
0.1%+25mA
0.1%+25mA
Ripple and Noise
(20Hz20MHz)≤
Differential Mode Voltage
15mVpp
15mVpp
15mVp-p
20mVp-p
15mVpp
15mVp-p
20mVpp
20mVp-p
25mVp-p
Differential Mode Current
10mArms
10mArms
8mArms
10mArms
12mArms
10mArms
12mArms
13mArms
15mArms
Rise time≤
10%-90%
100mS
100mS
150mS
150mS
100mS
150mS
150mS
150mS
150mS
Fall
time≤
90%-10%
2S
2S
2S
3.5S
2S
2S
3.5S
2S
3.5S

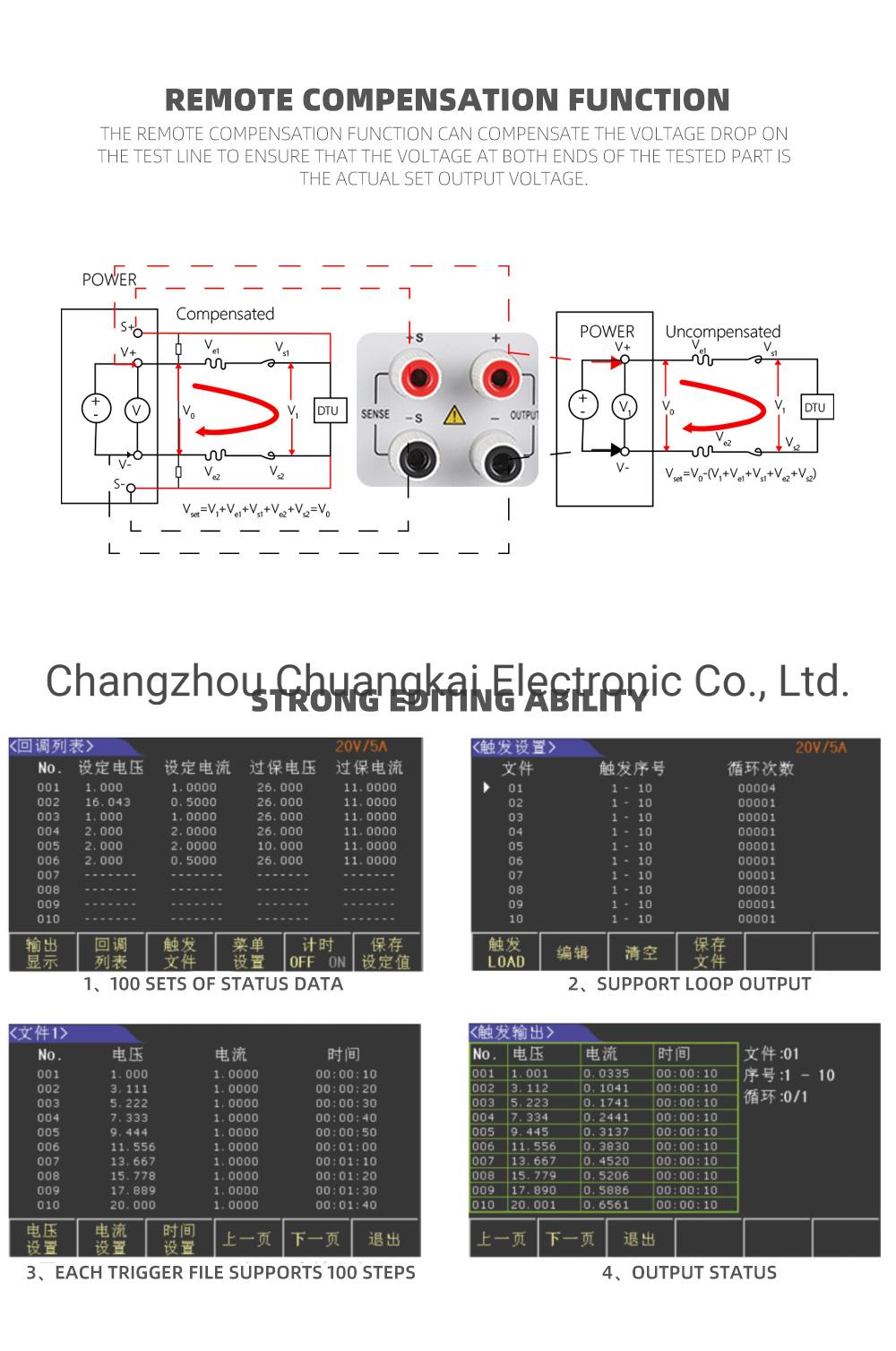

Memory
sets of trigger output, 100 steps per group, 100 groups of set memory

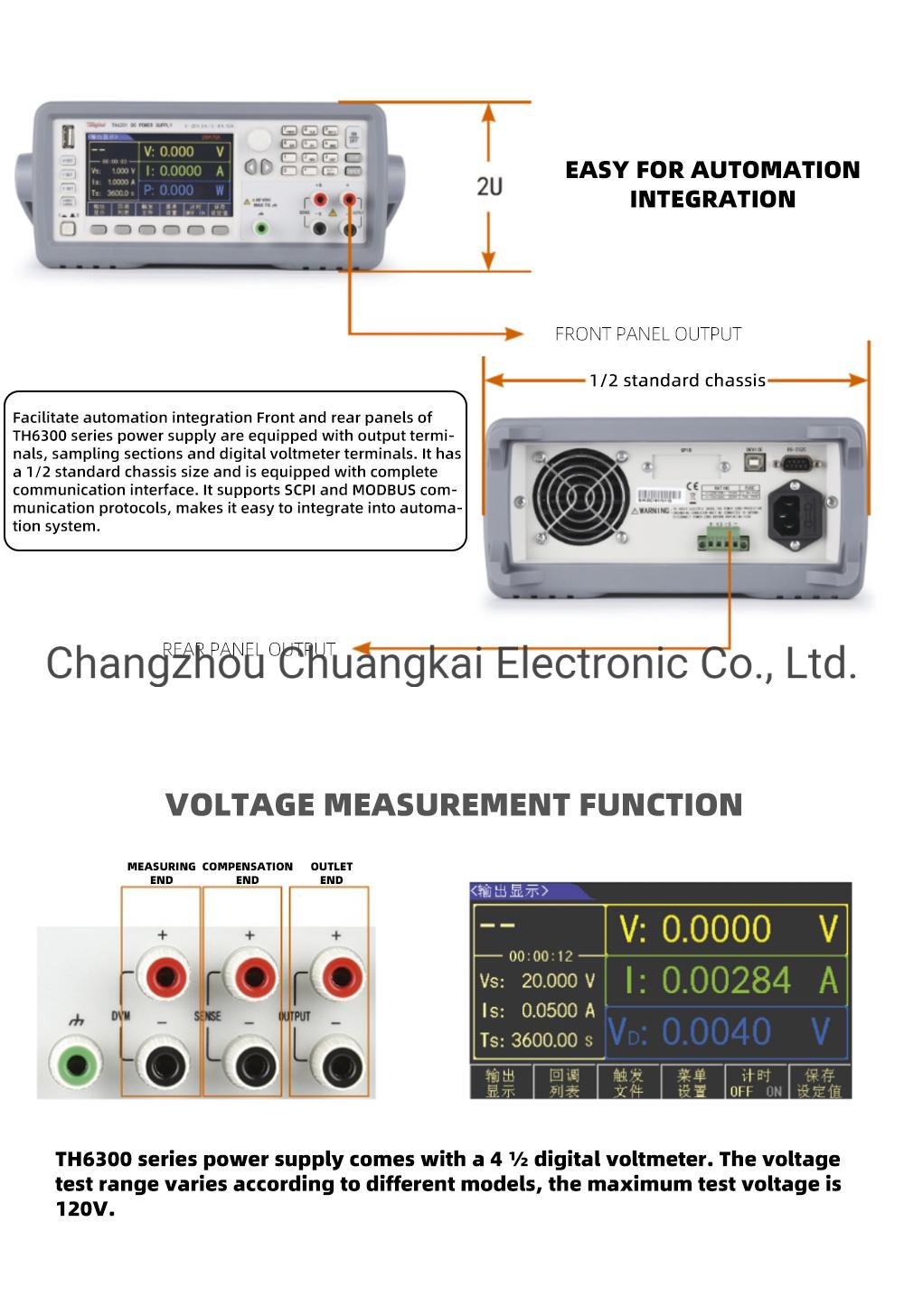

Output
Support front and rear panel output, the maximum output current of front terminal is 10A

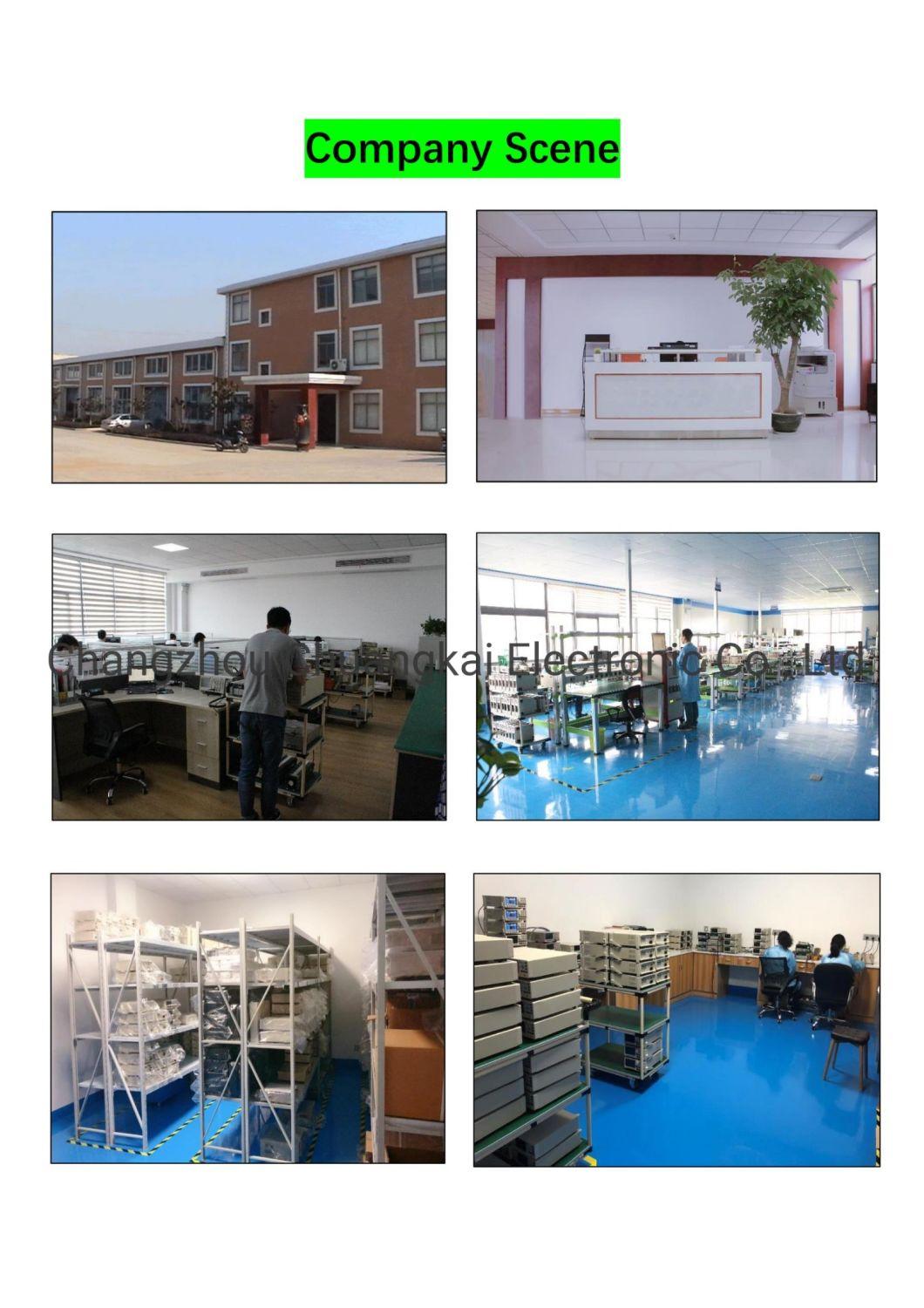

Company Profile https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html
