Sq-100 Metal Cutter for Various Material
Jinan Kason Testing Equipment Co., Ltd.- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Cutting Machine
- Maxcapacity:Without
- Accuracy Grade:1
- Load Way:Without
Base Info
- Model NO.:SQ-100
- Display:Digital
- Control:Electric
- Weight:0-100Kg
- Power Source:AC220V
- Max Cutting Capacity:Diameter 100mm
- Cooling Method:Outside Cooling System
- Cutting Wheels Size:250X2.5X32mm
- Power :2.2kw
- Spindle Speed:2800rpm
- Warranty:12 Months
- Transport Package:Standard Exporting Plywood Case
- Specification:400*730*310mm
- Trademark:OBT
- Origin:China
- HS Code:9024109000
- Production Capacity:100 PCS,Month
Description
Basic Info.
Model NO. SQ-100 Display Digital Control Electric Weight 0-100Kg Power Source AC220V Max Cutting Capacity Diameter 100mm Cooling Method Outside Cooling System Cutting Wheels Size 250X2.5X32mm Power 2.2kw Spindle Speed 2800rpm Warranty 12 Months Transport Package Standard Exporting Plywood Case Specification 400*730*310mm Trademark OBT Origin China HS Code 9024109000 Production Capacity 100 PCS/MonthProduct Description

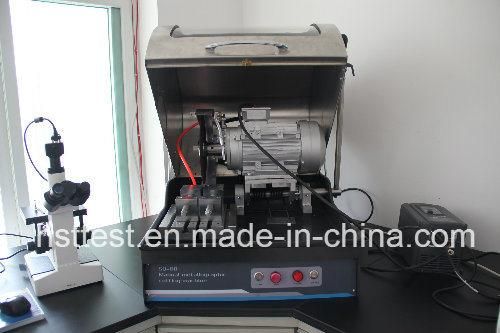

SQ-100 Metal Cutter for Various materialtel:86-15098778967
1.Application and Feature of cutting Machine
Model SQ-100 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Feature
- Quick clamping vice.
- 60L water cooling system
- Fully enclosed stainless steel structure
Model | SQ-100 |
Max Cutting Capacity | φ100mm |
Cooling method | T-slot worktable, dual drive vises Outside cooling system |
Cutting wheels size | 250x2.5x32mm |
Power | 2.2kw |
Spindle Speed | 2800rpm |
power supply | 380V,50Hz |
Dimension | 230X240mm |
Weight | 75KG |
