Basic Info.

Model NO. EVD-W HS Code 90248000 Production Capacity 100/Month

Product Description

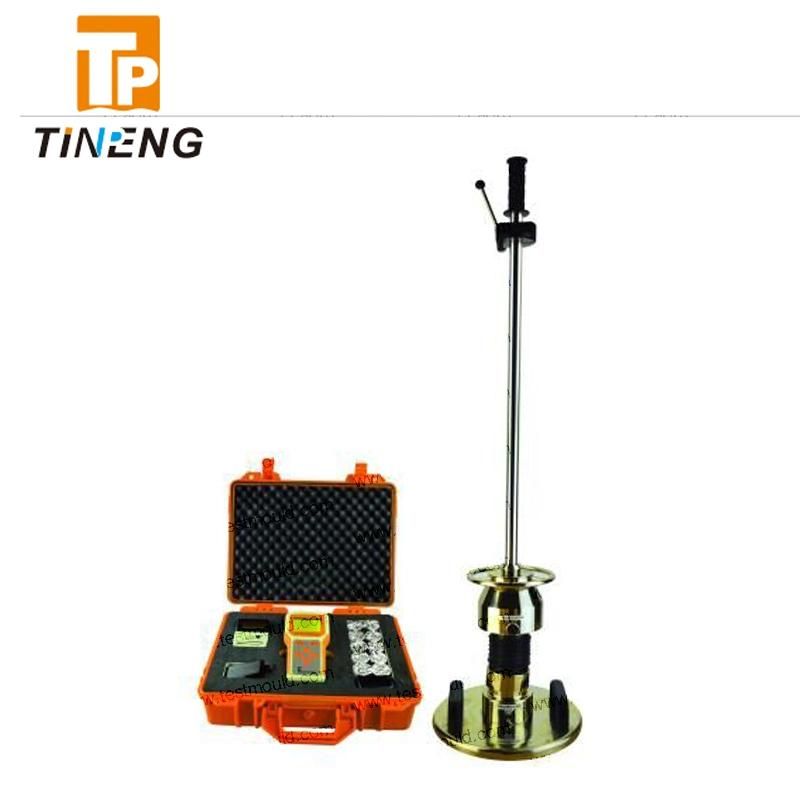

Portable Falling Weight Deflectometer

Application:

It is used to test the deflection value of  roadbed  in the function of load.

Testing range: 10 Mpa ≤EVD  ≤ 225Mpa

Testing depth:0-500mm



1,loading device:

loading device weight:15kgs

hammer weight:10kg

max.impact force:7.07KN

duration of impact:18ms



2,load plate:

weight:15kgs

diameter:300mm

thickness:20mm



3,settlement measuring monitor:

settlement measuring range:0.10-2.0mm

storage capacity:2000groups

weight:1KG

Power:3.7V/3.8AH lithium ion battery
