• Model NO.：GDG-4S
• HS Code：90248000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. GDG-4S HS Code 90248000 Production Capacity 100 Sets/Month

Product Description

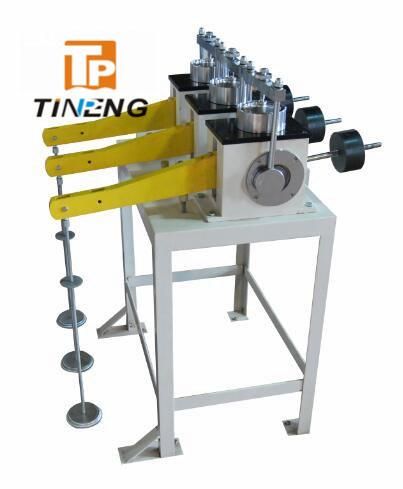

GDG-4S Triplex high-pressure consolidation test apparatus for soil

Standard: ASTM D3080, BS 1377:7, AASHTO T236  NF P094071-1/2

This apparatus is used for compression test of soil, determine the relationship between deformation and compression or between void ratio and pressure, and also deformation and time, to calculate the unit settlement, compression index, resilient index, compression modulus, and consolidation coefficient and so on. This apparatus is high pressure consolidation apparatus which can proceed low pressure, middle pressure and high pressure test.

Technical parameters:
(1). Specimen area: 30cm² and 50 cm²
(2). Lever ratio: 24:1 and 20:1
(3). Loading: weight
(4). Max. Pressure: 4000Kpa (30cm² ); 2000Kpa (50 cm²)(5). Pressure range: 12.5Kpa ~ 4000Kpa(6). Net weight: 140kg
