with Welder Transmission Shaft Balancing Machine (PHCW-1000)

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：1000kg
  • Type：Vibration Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：PHCW-1000
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Length：3600 Mm
  • Width：600 Mm
  • Height：1300 Mm
  • Gross Weight：1200 Kg
  • Transport Package：Fumigated Wood Box
  • Specification：ISO. CE. SGS
  • Trademark：JP
  • Origin：Shanghai China
  • HS Code：90311000
  • Production Capacity：1000 Sets,Month

Description

Basic Info.

Model NO. PHCW-1000 Loading Method Dynamic Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC380V Length 3600 Mm Width 600 Mm Height 1300 Mm Gross Weight 1200 Kg Transport Package Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

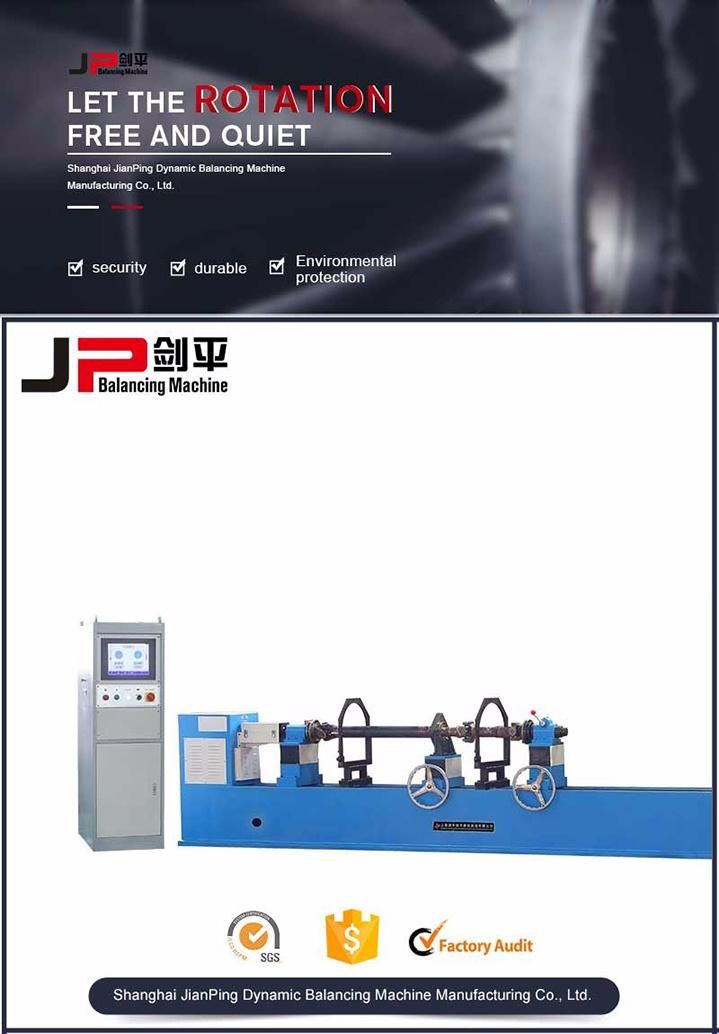

With welder Transmission shaft balancing machine (PHCW-1000)

with Welder Transmission Shaft Balancing Machine (PHCW-1000)

Production Description

Specially designed brackets transmit mechanical force with high rigidity
Durable and reliable sensor possesses high sensitivity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Advanced electrical measuring system and friendly man-machine interface

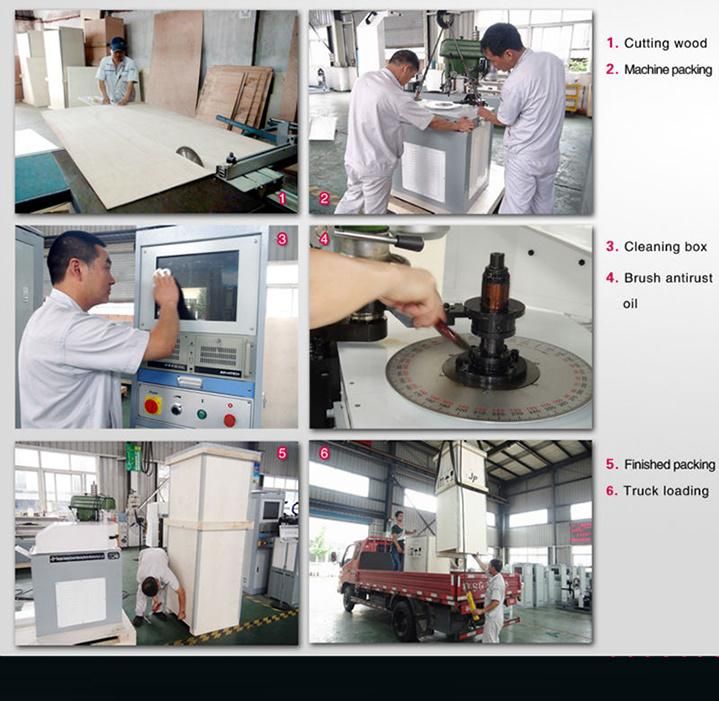

Package and transport
with Welder Transmission Shaft Balancing Machine (PHCW-1000)

Range of Application

This balancing machine is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output, small size, stable performance. Mainly used in the production and repair of all kinds drive shaft factories. With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost. It is an ideal device for shaft manufacturers and maintenance factories.

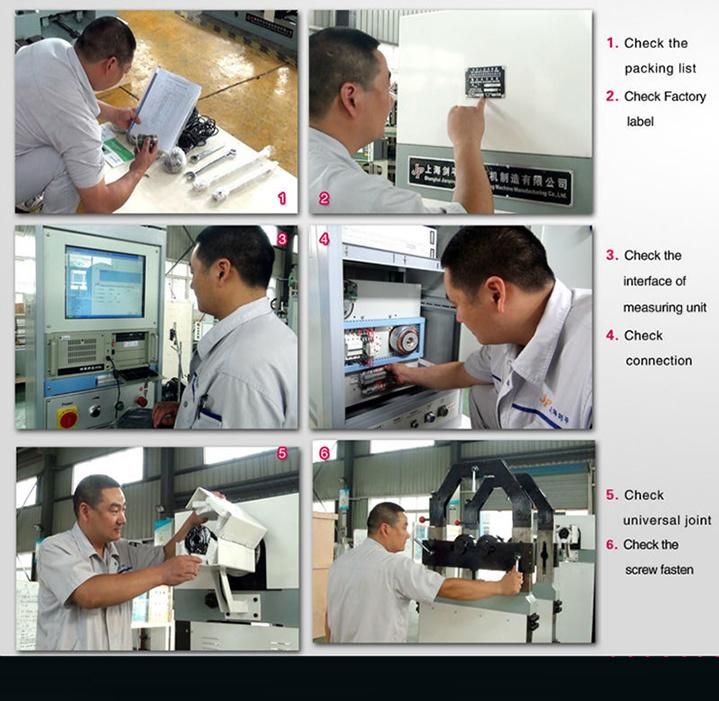

Delivery inspection
with Welder Transmission Shaft Balancing Machine (PHCW-1000)

Special Features

The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.

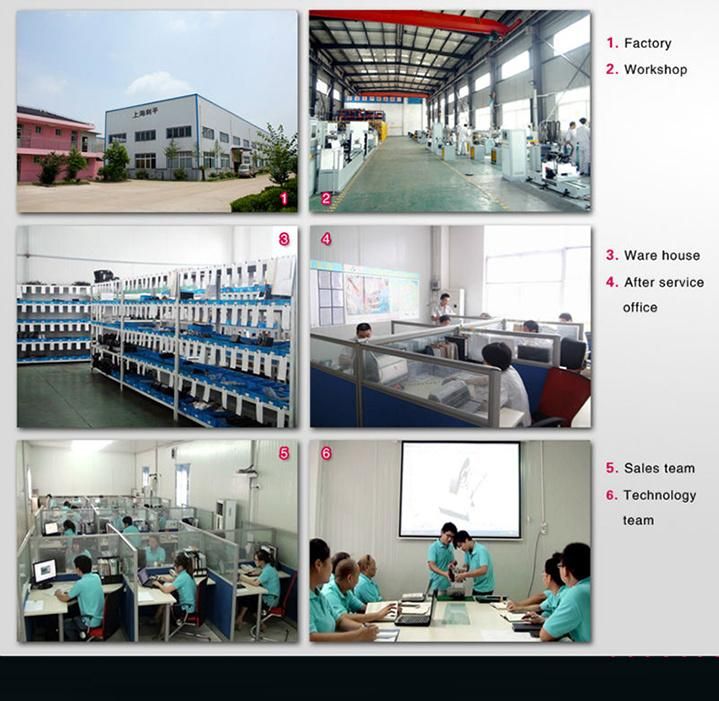

Factory Outlook
with Welder Transmission Shaft Balancing Machine (PHCW-1000)

Certificates
with Welder Transmission Shaft Balancing Machine (PHCW-1000)


Production Parameters
Technical data at a glancePHCW-1000/2000
Max Mass of Workpiece (kg)1000/2000
Effective length of workpiece(mm)3000
  Max Diameter of Workpiece(mm)Φ400
Shaft tube diameter of workpiece(mm)Φ300
Balancing speed(mm)600-1200/450-1200
Spindle Speed(r/min)410,750 stepless speed regulation
Motor Power(KW)3 frequency conversion
Universal joint torque(N.M)300
Min Achievable Residual Unbalance Amount(e mar )≤5g.mm/kg
A reduced rate (%) ≥85
