• Model NO.：STMD-5
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：64kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Stmd-5：Stmd-5 Asphalt Mixture Maximum Theory Density Mete
• Application：Suitable for Measuring Maximun Theory Density of a
• Suction Pressure Range：0-100kpa
• Vibration Loading：>10kg
• Vibration Frequency：3Hz
• Rated Power：200W
• Feature：ABS Plastic for Casing Cabinet
• Transport Package：Wooden Case
• Specification：0.3CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STMD-5 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 64kg Power Source AC220V Oil Cylinder Position No Stmd-5 Stmd-5 Asphalt Mixture Maximum Theory Density Mete Application Suitable for Measuring Maximun Theory Density of a Suction Pressure Range 0-100kpa Vibration Loading >10kg Vibration Frequency 3Hz Rated Power 200W Feature ABS Plastic for Casing Cabinet Transport Package Wooden Case Specification 0.3CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

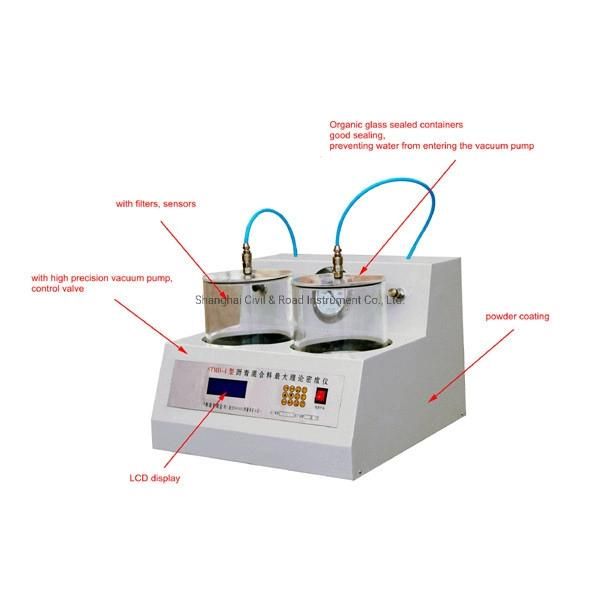

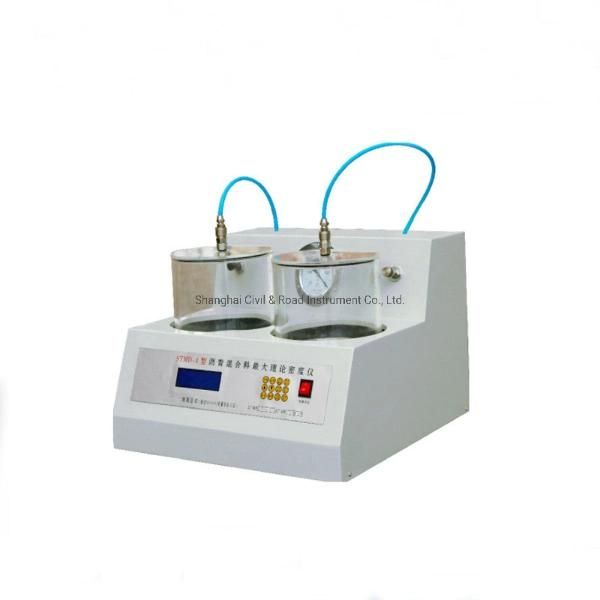

STMD-5 Asphalt Mixture Maximum Theory Density Meter (New Standard)


Consist of	Vacuum pump, vibration, Qi, relief is automatically completed
Feature	Using high precision absolute pressure sensor,instrument and negative pressure vessel pressure up to 3.7 kPa ± 0.3 kPa
A water buffer device	which can prevent the negative pressure container of water into the vacuum pump
A vacuum meter	can directly reflect the working condition of vacuum pump(two) technical parameters
The sample size	2000g
The maximum aggregate size	19.1mm
